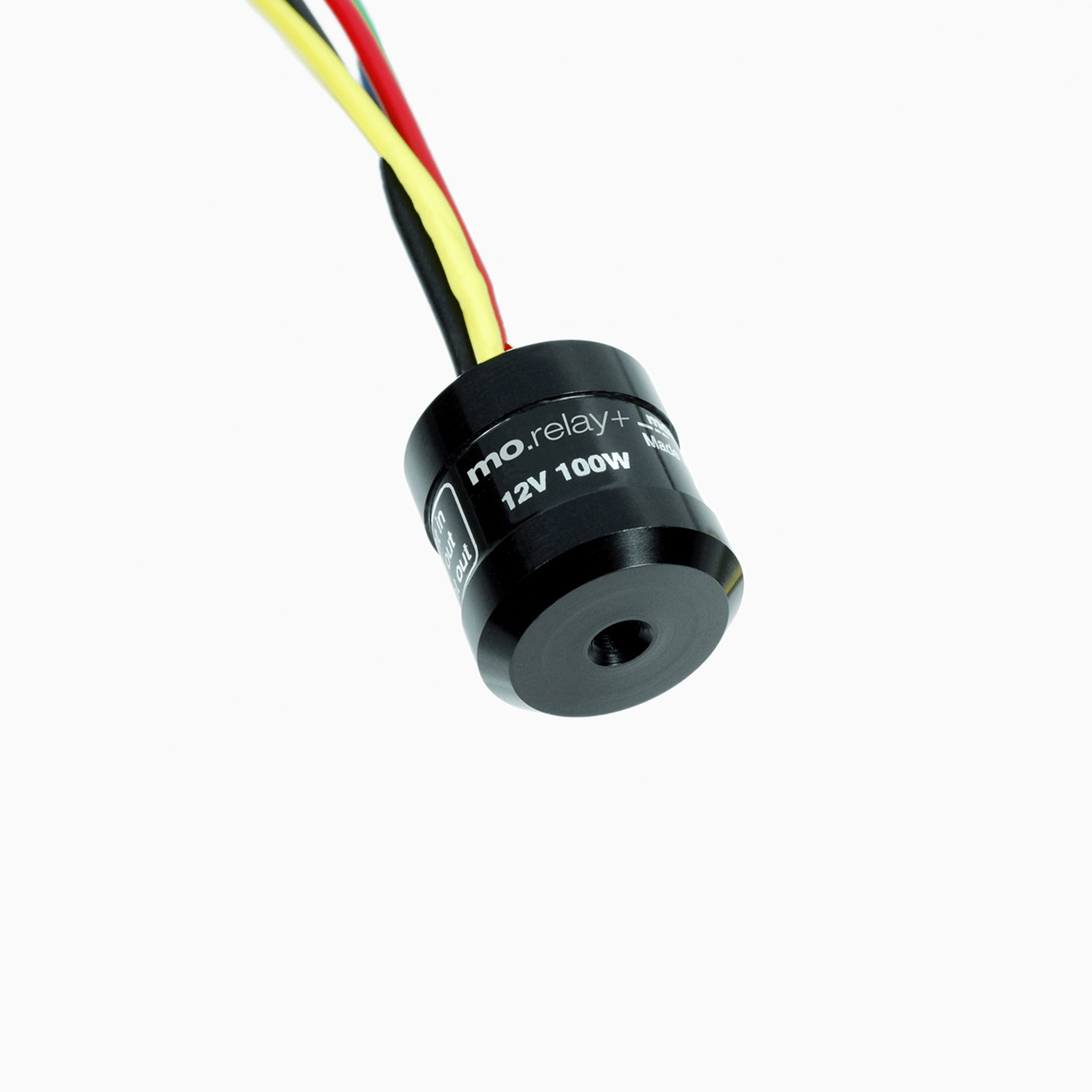

mo.relay+

The mo.relay+ allows 4 modes to be activated - depending on the duration of operation of the respective turn signal:

1. Lane change: Tap button briefly - flash 3x, then automatic switch-off;
2. Turning: briefly press the button - 10x flashing, then automatic shutdown;
3. Continuous flashing: prolonged pressing of the pushbutton - switch off by pressing a pushbutton again;
4. In addition, the mo.relay+ has a warning flashing function when both buttons are pressed simultaneously.

The mo.relay+ is load independent (1-100W) and can supply almost all possible LED turn signals, micro turn signals, halogen turn signals and 10W or 21 Watt incandescent lamps with a constant flashing frequency. Instantaneous, lossless and brighter glow of the turn signals is a result of the effective microelectronics. The small and lightweight aluminum housing is anodized black and has a practical M3 mounting thread. On-the-fly mounting with cable ties is also possible. Ideal for conversions and custom bikes with little space. The electronics are absolutely waterproof, vibration resistant, and has overload protection.

If you are looking for an alternative flasher relay WITHOUT button control, please see our mo.flash or mo.wave. The flasher relay WITHOUT button control and automatic shutdown is the mo.stop.

Advantages

• Very small and lightweight, easy to attach
• Ideal for custom bikes and conversions with limited space - clunky standard flasher relays or load resistors are a thing of the past
• No additional pushbutton control necessary
• Intuitive timer control and automatic switch-off function
• Almost load independent (min. 1 Watt)
• Works completely with digital semiconductor technology. Control via microprocessor. No mechanics, no coils, no contacts.
• Always constant and correct flashing frequency - suitable for almost all LED turn signals, all micro turn signals, halogen turn signals, 10 watt turn signals, 21 watt turn signals. For example, it works with 4 turn signals or 2 handlebar end turn signals.
• Instant, lossless, brighter turn signal illumination Housing is solid and sealed: absolutely waterproof and vibration resistant.
• Short circuit proof, automatic overload protection. Switches up to 100 watts power.
• No heat generation during operation
• Operating voltage already from 5V to 18

• Diameter without cable: 19 mm / 0.75
• Height: 19 mm /0.75"

1x mo.relay+
