mo.switch basic LED

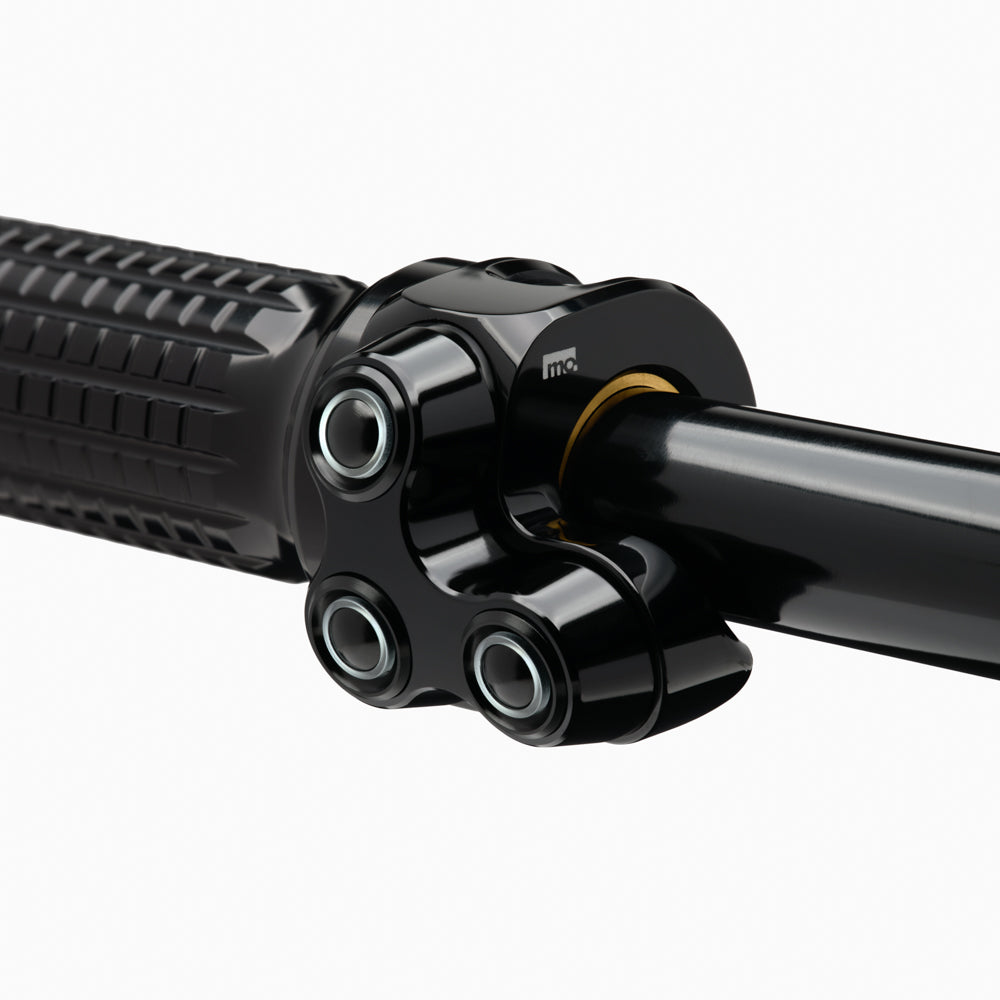

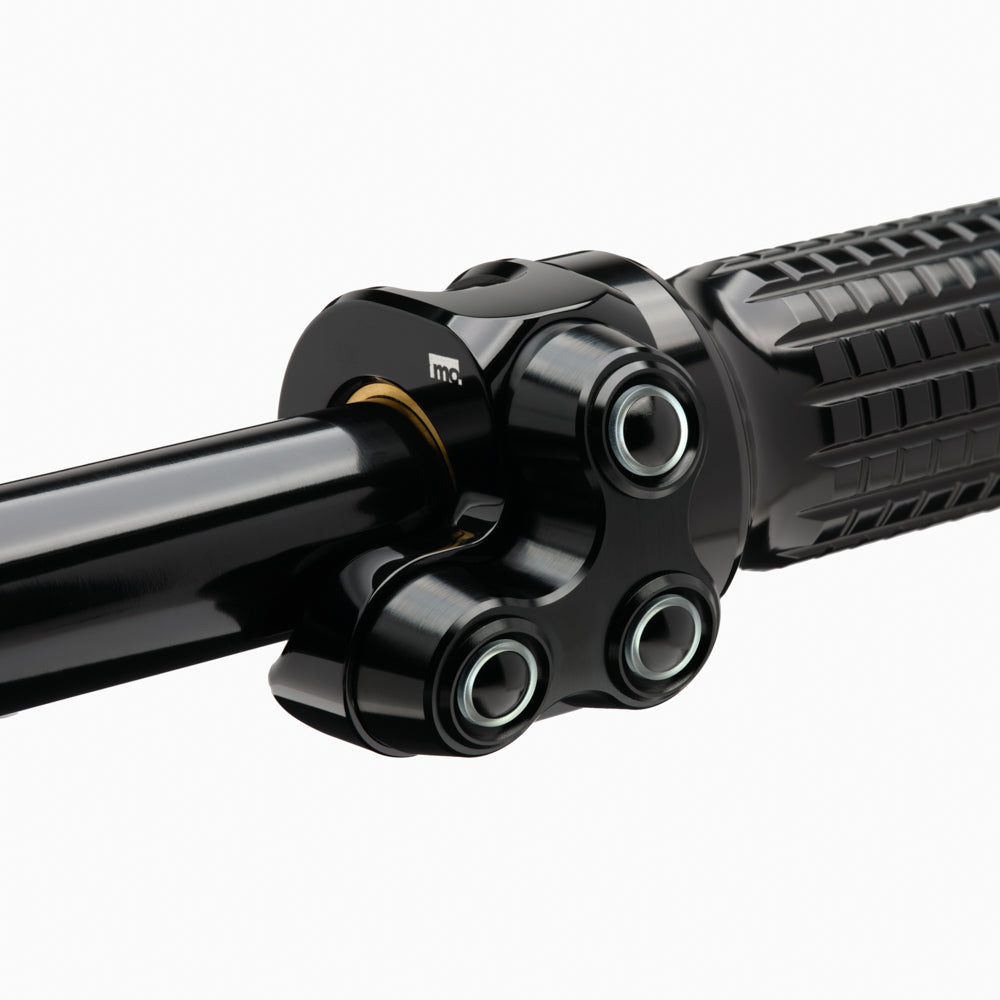

The mo.switch basic LED is a universal, high-quality pushbutton fitting for handlebars with 1 inch or 22.2 mm (7/8 inch) diameter tube in a simple, elegant design. In conjunction with an electronic switching unit (not included), these CNC-manufactured pushbutton fittings can switch all electrical units such as lights, turn signals, e-starters, horns and much more.

CNC machined from billet aluminum, the housing is anodized in gloss black for durability. The individual pushbuttons are high quality, robust and protected against vibration and splash water (IP65).

Each button is surrounded by a lit white LED halo, adding visual interest. Due to sufficient size and ergonomic pressure point (light pressure with mechanical action) they allow a safe switching feeling during operation, even when wearing gloves.

With two connections per pushbutton, a one-wire or two-wire circuit is easily possible. A connection for ground is already provided internally for the one-wire circuit. Installation is easy with routing the cable through the handlebar. In case of possible damage, the pushbuttons are individually available and replaceable (please contact us directly).

The mo.switch basic is compatible with all motogadget pushbutton switching controls, such as the mo.unit blue or basic (sold separately).

• Inner diameter: 22.2 mm (7/8") and 1"
• Outer diameter housing: approx. 45 mm (1.77")
• Width: 2 button 22 mm (0.87") or 3 button 42.5 mm (1.67")
• Pushbutton completely wired
• High quality connection cable with 1.8m (70.8") length
• LED illuminated buttons
• high quality CNC milled from billet aluminum and anodized for UV resistance
• Housing color black, button black, button LED color white
• maximum pushbutton switching current: 1A, all pushbuttons switch to ground
• NOTE: additional switching electronics required (i.e. mo.unit)

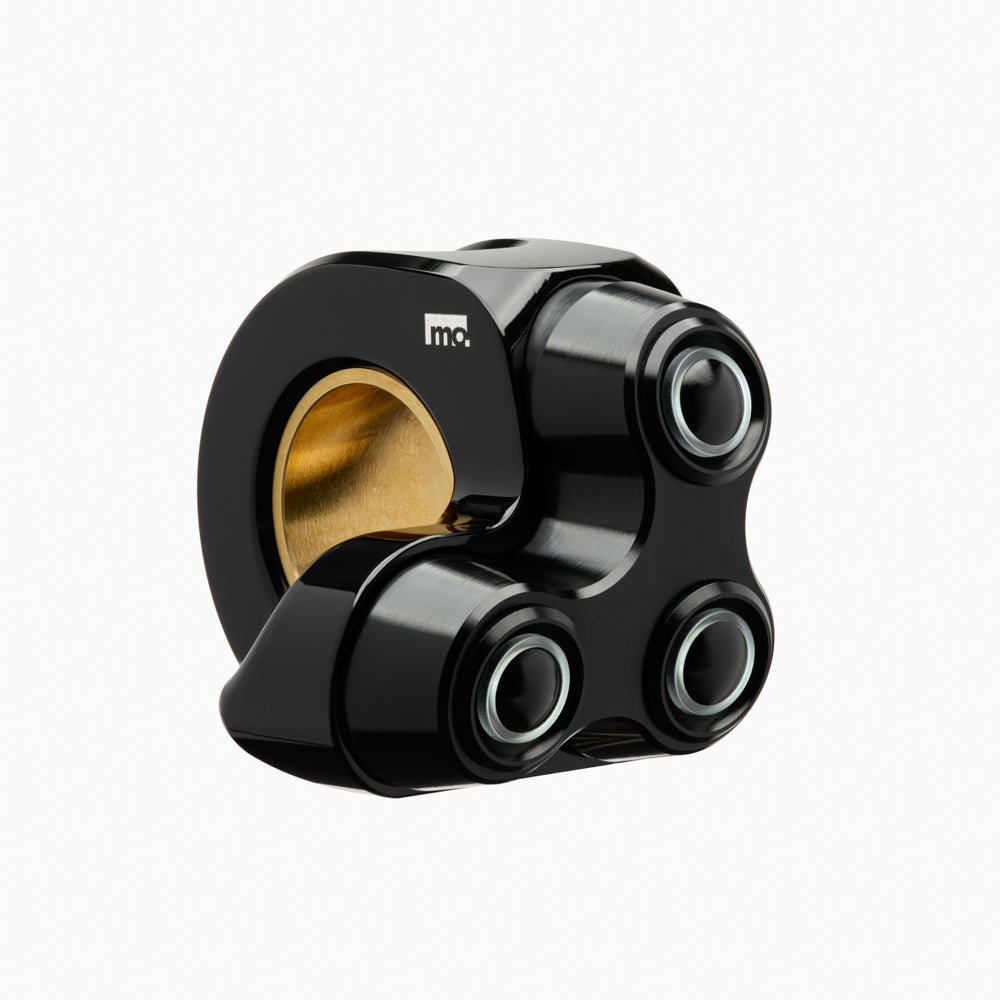

• mo.switch basic aluminum housing
• 2 or 3 high quality pushbuttons per unit
• QR code for mounting and operating instructions
