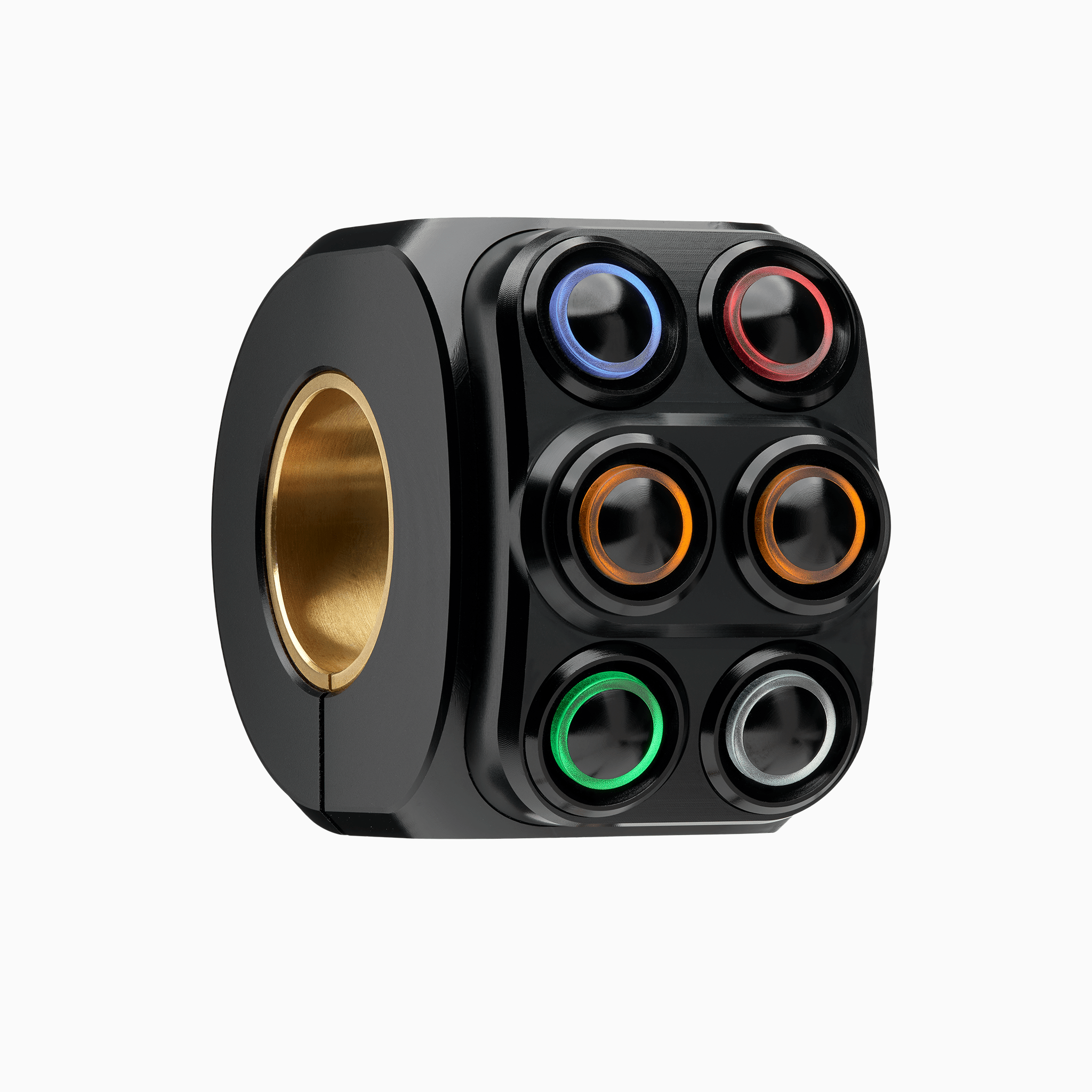

mo.switch pro

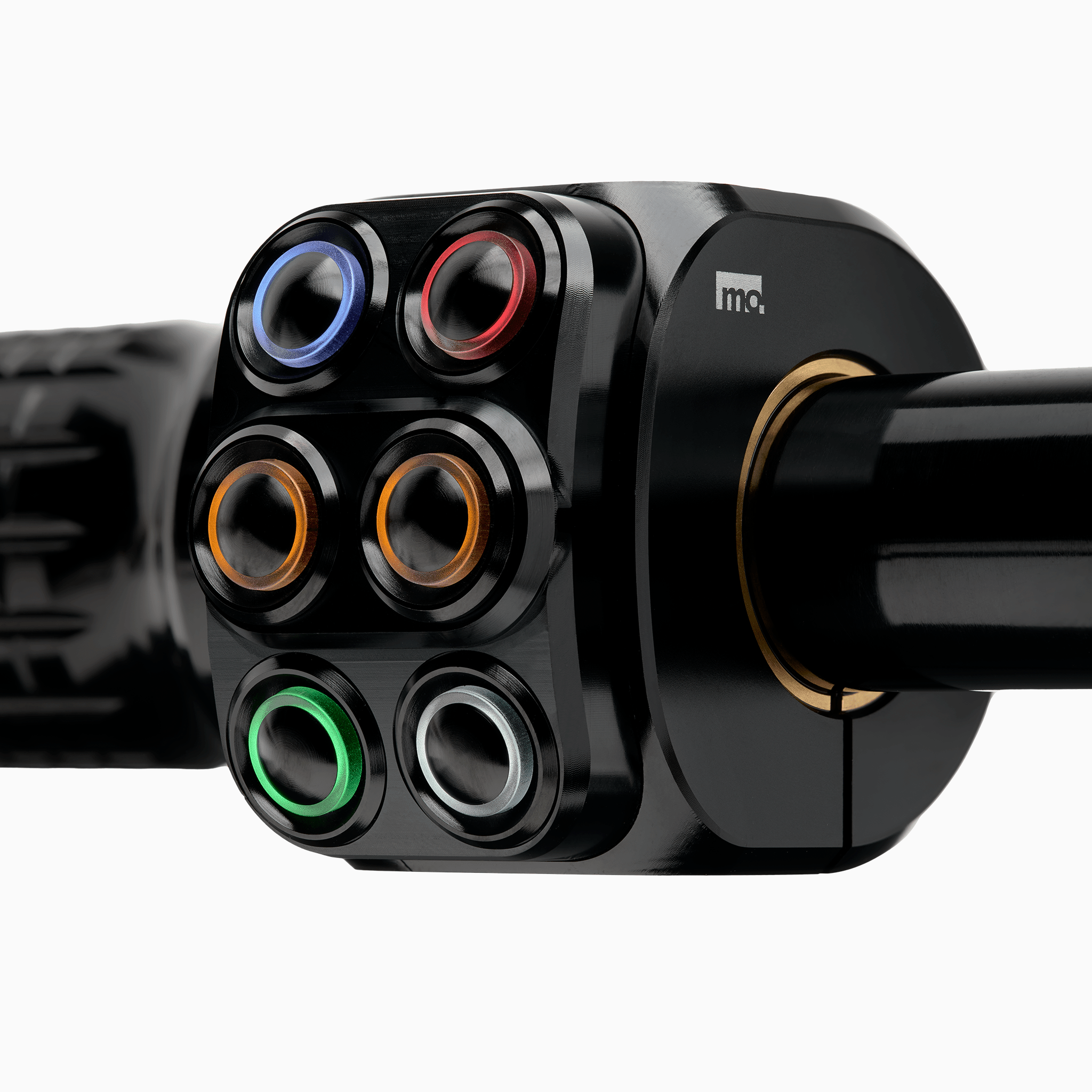

The mo.switch pro is our flagship. The left-handed pushbutton panel is designed as a complete solution and includes all standard pushbuttons required to control the motorbike. A universal, high quality pushbutton fitting suitable for a handlebar diameter 22.2mm (7/8") or 1 inch. Due to sufficient size and ergonomic pressure point (light pressure with mechanical action), they allow for a safe switching feeling during operation, even when wearing gloves.

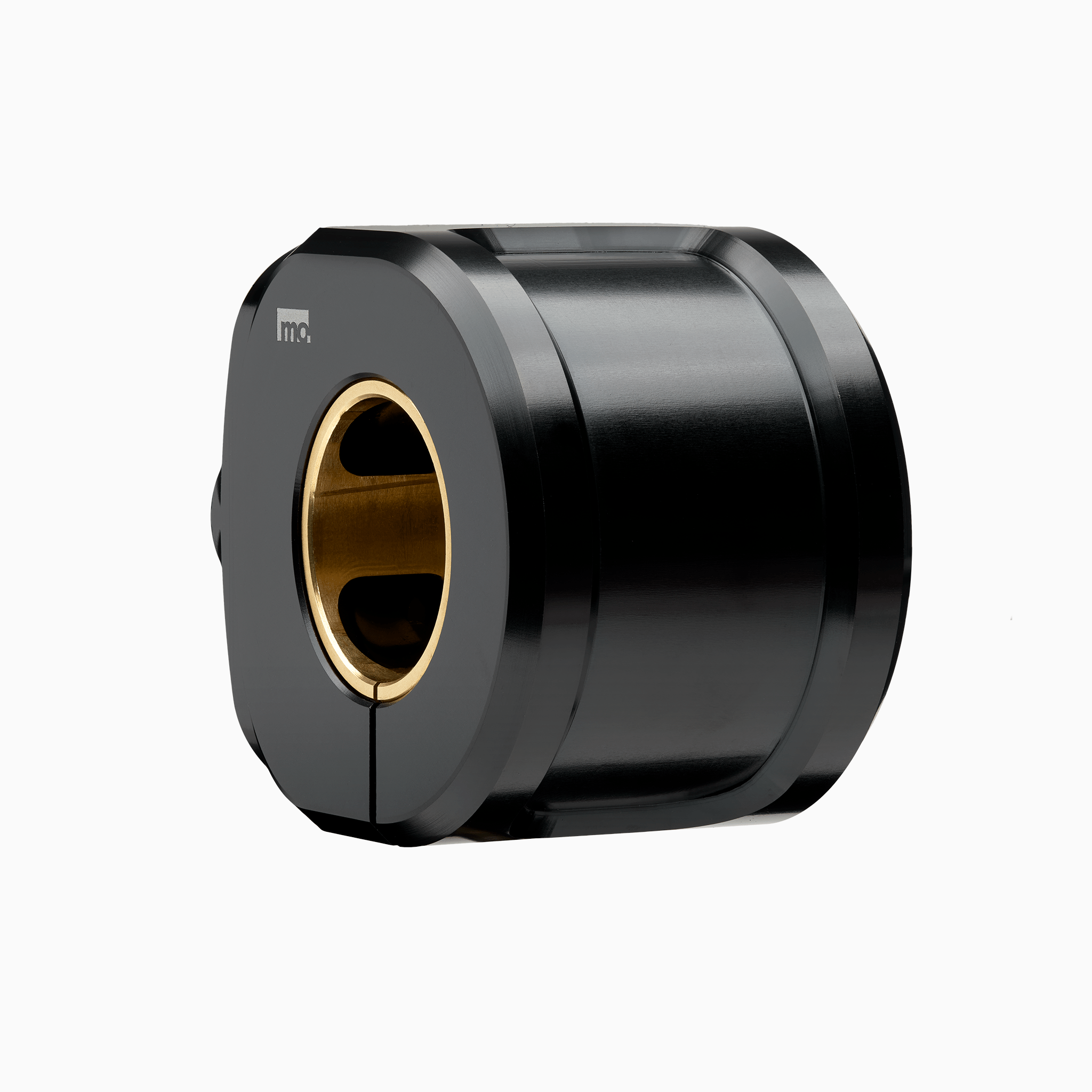

CNC machined from billet aluminum; the housing is additionally black anodized for durability. The two-part design in-clamp housing and stylus inlay makes mounting child's play. The supplied handlebar adapter acts here as a drilling template. A hidden M4 stainless steel mounting screw clamps the unit securely to the handlebar. The mo.switch pro is "ready to connect". Everything has already been completely wired, as we have already carried out the time-consuming connection of the individual buttons with the respective LED multicolored lighting.

The pushbutton unit is waterproof molded on the back and equipped with a highly flexible, black, 8-core cable.

The 1.8m (70.8") cable is specially manufactured to our specifications, has a low cross-section and is perfect for easy routing through a handlebar.

• Pushbutton unit pre-wired and waterproof encapsulated
• High quality connection cable with 1.8m (70.8") length
• Jet water resistant according to IP65
• Ring-shaped LED illumination of the individual buttons
• Button functions: Horn | High beam | Turn signal left & right | Starter | Instrument

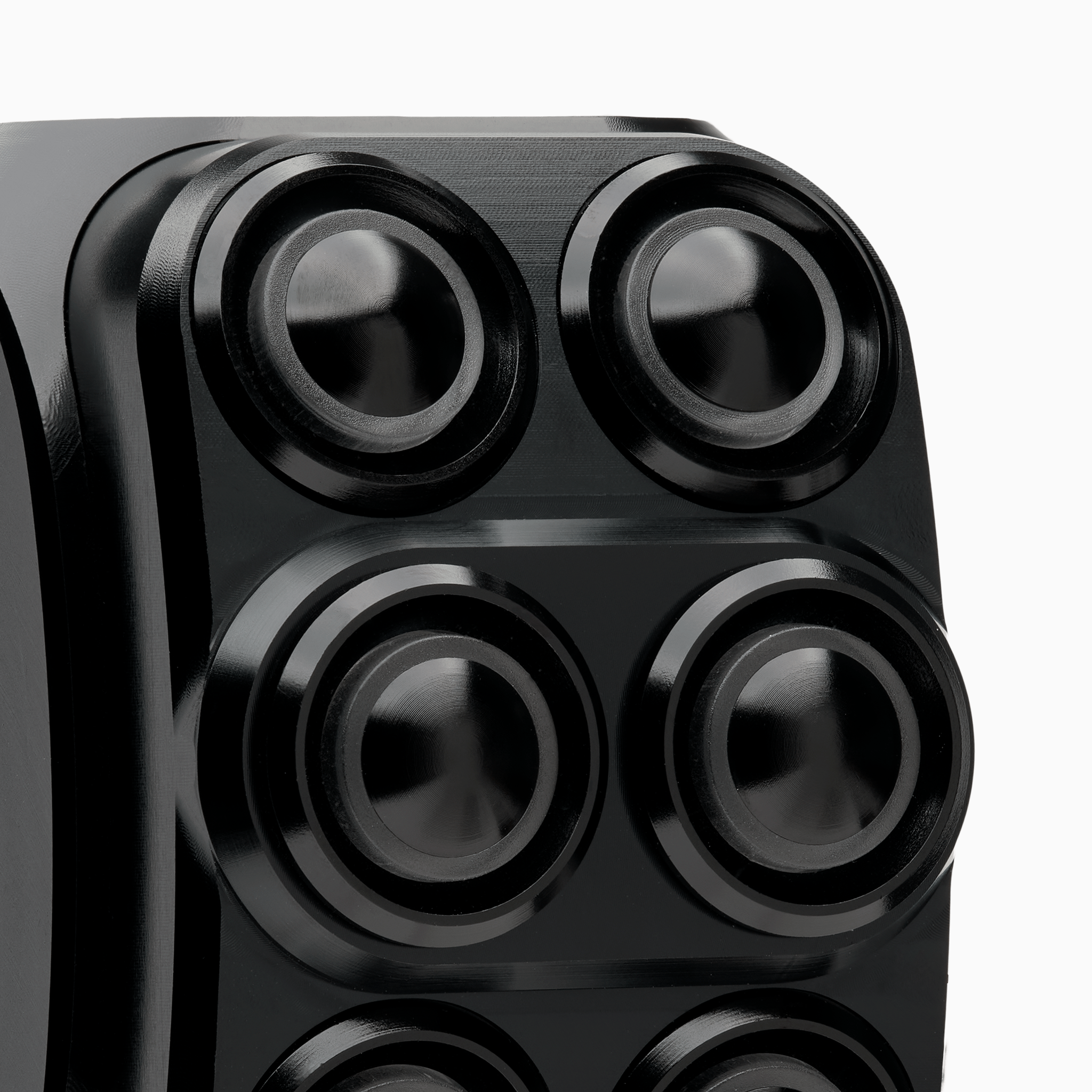

• Clean look without visible screws
• Easy mounting without wiring of individual pushbuttons
• Suitable for handlebar diameter 22.2 mm (7/8") or 1 inch
• High quality CNC milled from aircraft aluminum and UV resistant anodized
• Housing color black, button black, button LED colors red, green, blue, white, yellow
• Maximum pushbutton switching current: 1A, all pushbuttons switch to ground
• NOTE: Additional switching electronics required (i.e. mo.unit)
• Dimensions: (HxWxD) 48mm x 36mm x 58mm / 1.89" x 1.42" x 2.28"

• Pushbutton unit with 1.8m (70.8") connection cable
• Mounting screws

Electronic switching unit is NOT included!
