motoscope pro

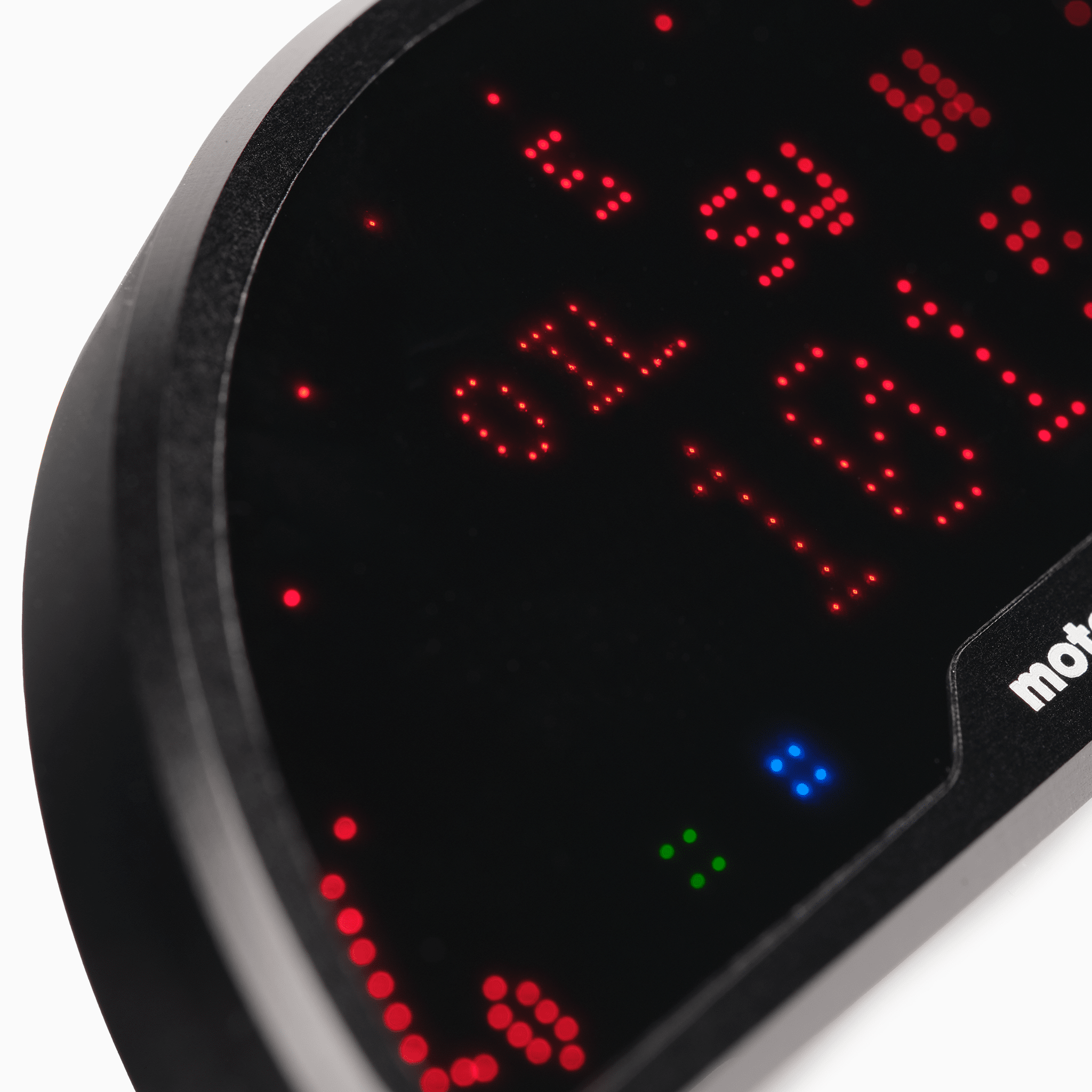

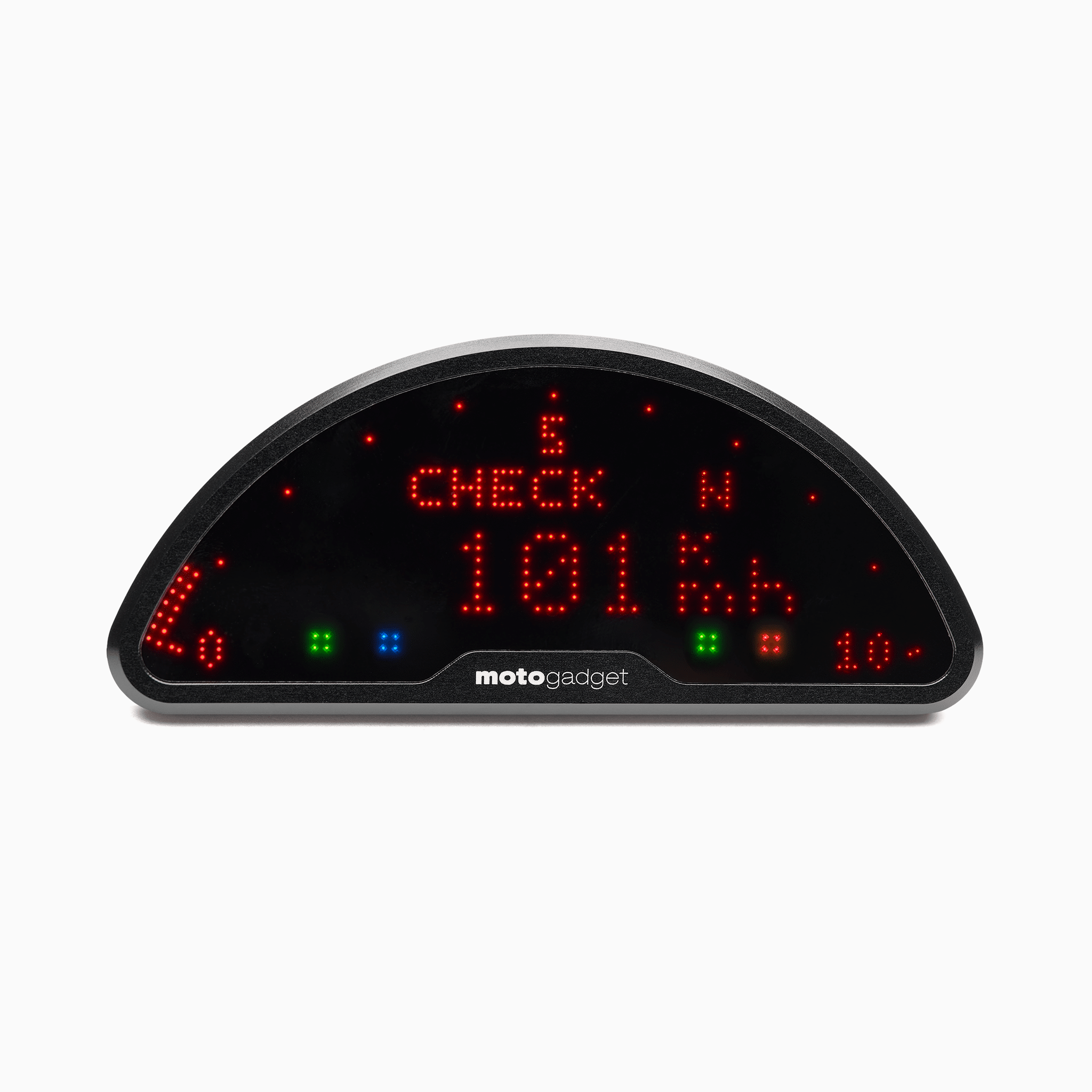

The motoscope pro impresses with its ultra-flat housing design, 734 LEDs, all controlled by a 16bit RISC processor, forming the illuminating display matrix with automatic brightness adjustment, ensuring optimal readability even in direct sunlight. An analog LED band with a drag pointer function displays the speed in a freely scalable manner. The main and secondary displays can be configured by the user, with another part of the display showing the engaged gear. Four indicator lights are already integrated and can be assigned to many more input signals. The Breakout Box A or B is additionally required for the connection wiring of the indicator lights and/or measuring inputs.

The motoscope pro has a complete CAN bus interface and is prepared for many future developments of Plug 'n Ride solutions. The aluminum housing is milled from billet aluminium, anodized and can be easily mounted by two threaded bushings on the back.

Please order the breakout box for connecting indicator lights separately.
For BMW R9T, no breakout box is needed.

• Length x width x depth: 109 mm / 47 mm / 11 mm (4.3" x 1.85" x 0.43")
• Weight with cable: approx. 100g / 0.22 lbs / 3.52 oz
• Mounting: 2 x M3 threaded bush
• Current consumption in operation: approx. 200 mA (load-dependent)
• Current consumption in idle state: 0.4 mA
• Operating voltage: 9 V - 15 V
• Operating temperature: -20°... +80°C / -4°F…176°F
• Tachometer (LED band): 0 - 6, 8, 10, 12, 14, 16, 18 krpm (adjustable)
• Speedometer: 0 - 350 km/h o. mph
• Trip meter A: up to 999.9 km or mi
• Total kilometers (adjustable): up to 250000 km or mi
• Operating hours counter/service: 0 - 9999.5 h
• Clock: 23:59 h/min
• Travel time display: 0 - 99:59:59 h/min/s
• Tachometer (on LCD): 0 - 20000 rpm
• adjustable speed warning (shift flash): 0 - 20000 rpm
• On-board voltage indicator: 9 - 18 V
• Undervoltage warning: Warning when below approx. 11V
• Time measurement: 0 - 100 km/h o. 0 - 60 mph 0.00 - 30.59 sec.
• instantaneous acceleration: +/- 0.00 - 1.50 G
• Average speed: 0 - 350 km/h o. mph
• Maximum speed: 0 - 350 km/h o. mph
• Maximum speed: 0 - 20000 rpm
• max. positive acceleration: +1.50 G
• max. negative acceleration: - 1.50 G
• Gear indicator N, gear 1 - 6
• green control LED (with breakout box A/B): idle (N)
• green control LED (with breakout box A/B): turn signal left, right
• blue control LED (with breakout box A/B): high beam
• red warning LED (with breakout box A/B): various warning functions
• Gasoline/reserve (with breakout box A/B): 0 - 100% with low warning
• Air temperature* (with breakout box B): -20/ - 80 °C / -4 - 176 °F with High-/Low-warning
• Water temperature* (with breakout box B): 40 - 120 °C / 104 - 248 °F with high/low warning
• Oil temperature* (with breakout box B): 40 - 150 °C / 104 - 302 °F with High-/Low warning
• Oil pressure* (with breakout box B): 0.5 - 8 bar / 0 - 116 psi with high/low warning

*Please note that temperature and pressure sensors and breakout boxes must be ordered separately.

• Instrument with approx. 75 cm / 29.5" connection cable
• Mini pushbutton
• fuses
• 6 Cable end connectors
• Speedometer sensor (M5 x 0.5 fine thread, stainless steel, IP 68) with 150 cm/ 59" connection cable
• 2 strong neodymium mini magnets
• 2 M3 mounting screws with washer
• QR code for mounting and operating instructions.
