mo.lock NFC

The mo.lock NFC is a contactless, digital ignition lock which replaces mechanical ignition locks or their electrical switching function. When approaching the mo.lock at a switching distance of approx. 40 mm / 2", the associated key switches the ignition on or off without contact.The mo.lock NFC is based on "Near-Field-Communication" technology and is, in contrast to radio remote controls, extremely tamper-proof. Each key has a unique digital code and only the correct digital code can operate the mo.lock. Neither the key, nor the mo.lock, can wear out mechanically. The mo.lock switches a car relay that can be loaded with up to 40A - sufficient for any motorcycle electrical system. The hidden installation of the small mo.lock behind non-metallic parts, e.g. a plastic side cover, allows for the complete removal of the mechanical ignition lock. Clean looks and design freedom are guaranteed creating new possibilities, especially for custom bikes.

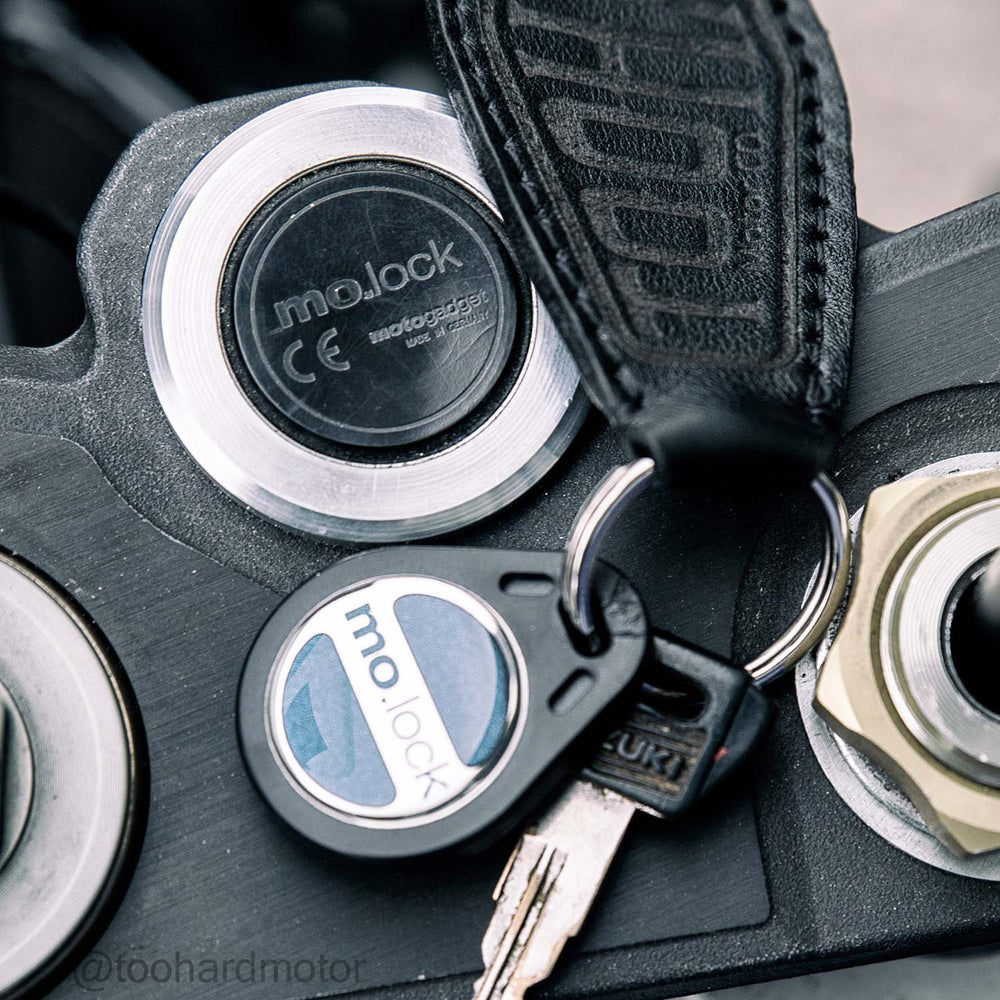

The two included keys have the size of a key fob and can be used to switch the on-board voltage or to teach new keys. A maximum of 125 keys can be replicated on one mo.lock NFC. Additional keys are available for purchase from motogadget. The mo.lock NFC has a LED on the front side, which shows the switching states by different colors. To protect the vehicle battery, the standby current is only 3.2 mA when switched off. It reduces to 1.5 mA after 16 hours and to 0.75 mA after a further 8 days.

We do not recommend using the mo.lock in conjunction with an immobilizer. Please ask your dealer if the immobilizer can be deactivated.

Advantages

• NFC technology is tamper-proof
• Each key has a unique code
• Key switches the mo.lock NFC and the entire vehicle electrical system via the relay
• Key and mo.lock are not subject to mechanical wear
• The keys do not need a battery and can not fail from lack of power
• No overloading or scorching of contacts possible due to indirect switching via 40 A load relay

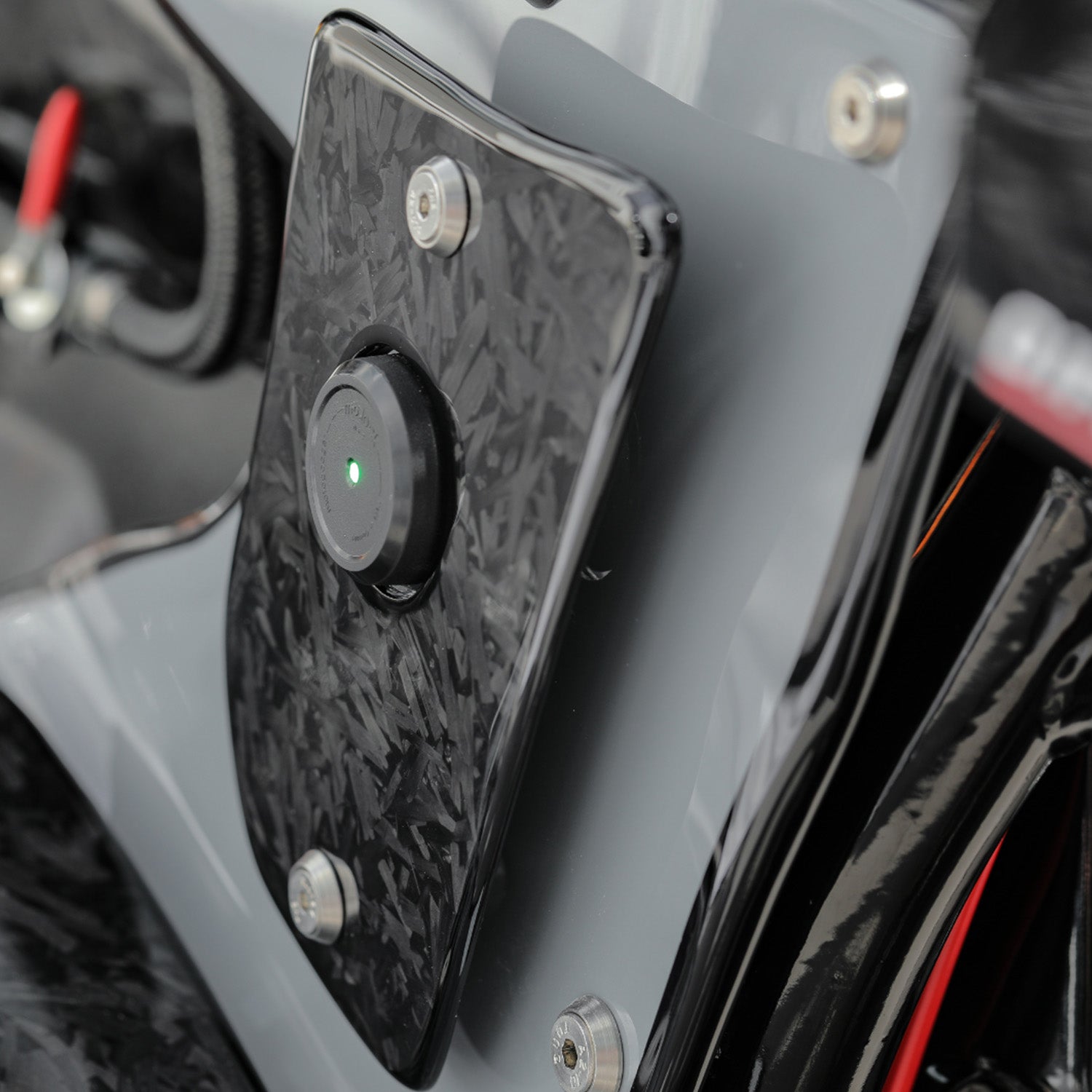

• The mo.lock NFC is very small and can be hidden when mounted in many places
• The mo.lock NFC is overmolded with a non-flammable thermoset and therefore 100% water and vibration resistant (IP69)
• Keys are appealingly small (30mm /1.18" diameter) and light (2 gr /0.071 oz.)
• Additional keys can be purchased from us and trained on the mo.lock - meaning the key service is already integrated
• Due to the switching distance of approx. 4 cm/2", contactless, convenient switching on and off is safely ensured - unintentional actuation is highly unlikely

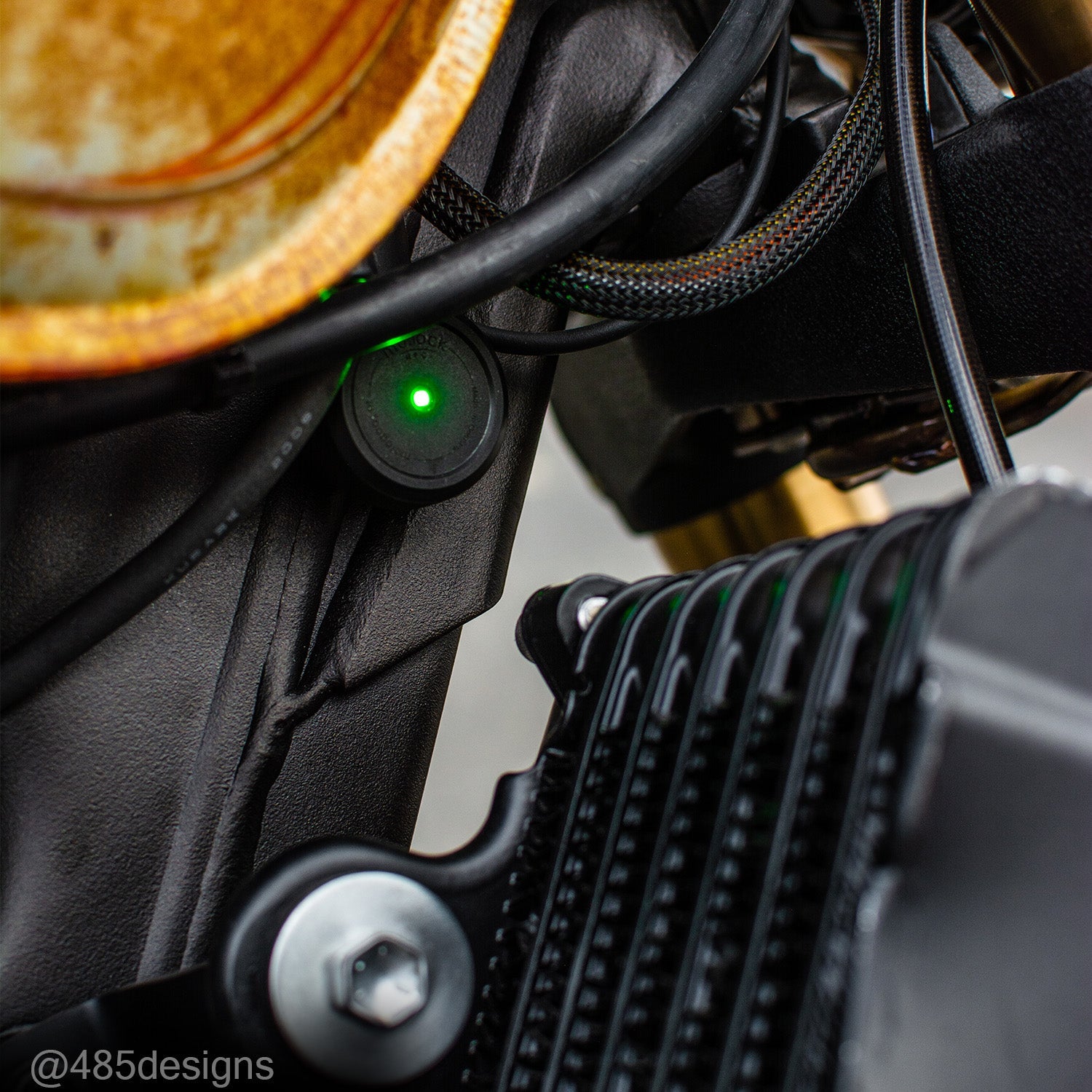

• An integrated RGB LED indicates the status of the mo.lock NFC when in use and when teaching new keys
• To protect the vehicle battery, the mo.lock NFC automatically reduces the inactive current in 3 stages when not in use.

• Diameter of the transmitter/receiver on the vehicle 32 mm /1.26"
• Height 12 mm without plug contacts and housing
• Weight approx. 35 g / 1.235 oz
• Mounting 1 x M3 threaded bushing on rear side, bracket with 2 mounting holes
• Operating voltage8 V - 18 V
• Operating temperature -20° to +80°C / -4°F to 176°F

• mo.lock NFC with high quality cable terminals for 3 wires in thermoset injection molded housing
• 2 keys
• 1 car relay 12V / 40A with flat terminals and insulator sleeves
• Detailed mounting and operating instructions
• Instruction manual

The installation ready mo.lock wiring harness can be ordered separately.
